PATCHBAYS
Features and Benefits
? Midsize video jacks rated from
DC to 3 GHz

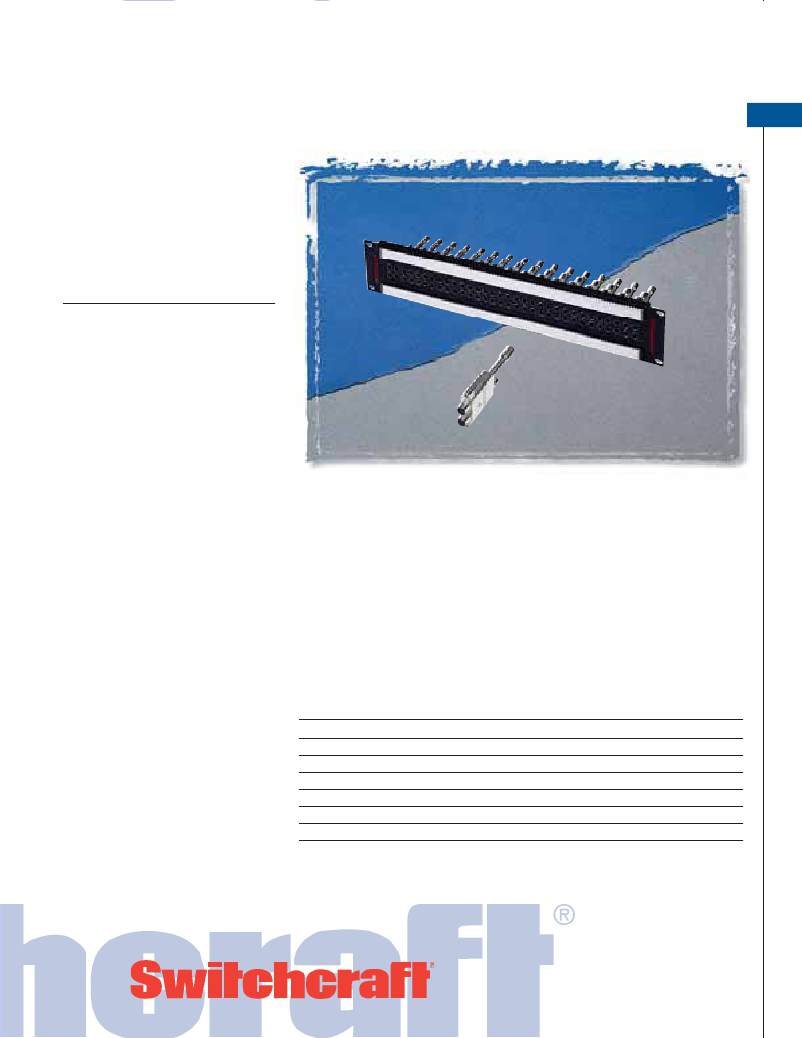

MVP Midsize Video Patchbay Series
37
? 32 midsize jacks mounted either
1RU, 1.5RU or 2RU panel
? Available in terminated or
non-terminated configurations
Specifications
Materials
Frame: Aluminum, black anodized
Designation Strips: Vinylite, white
Designation Strip Covers: Lexan,
transparent
Jack Inserts: Thermoplastic,
UL 94V-0 rated
Midsize Video Jack
Specifications
MVJ*75T
MVP32K3*75T
Electrical
Rated Bandwidth: 3.0 GHz
Characteristic Impedance:
75 ohms
Return Loss: See Typical Return
Loss Chart
The MVP Series video patchbays offer outstanding performance and high density.
Patchbays consist of 32 jacks in either 1RU or 2RU heights, jacks come either
terminated or non-terminated. These jacks are rated from DC to 3 GHz, and are
rated at 30,000 lifecycles. The 1.5RU and 2RU come with cable tie bars.
Environmental
Insertion Loss: See Typical
Insertion Loss Chart
Contact Resistance:
Less than 20 milliohms
Termination Resistance:
75 W, ±1%
Center Conductor: Accepts .048
Switching Springs: Copper alloy,
gold plated
Grounding Contacts: Copper
alloy, gold plated
BNC Insulators: Teflon
Actuators: Thermoplastic,
UL94V-0 rated
Operating Temperature:
– 40°C to 65°C
Storage Temperature:
– 55°C to 85°C
Thermal Shock:
Per MIL-STD-202, Method 107
Moisture and Humidity:
pin diameter
Mechanical
Mechanical Shock: Per MIL-STD-
Ordering Information
Per MIL-STD-202, Method 106
202, Method 213, Test condition I
Vibration: Per MIL-STD-202,
Method 201
Life Cycle: 30,000
Materials
Part Number
MVP32K1*75T
MVP32K1*NT
MVP32K2*75T
MVP32K2*NT
Type of Jack
Midsize
Midsize
Midsize
Midsize
Height
1.75"
1.75"
2.62"
2.62"
Description
Terminated
Non-terminated
Terminated
Non-terminated
Housing: Zinc alloy, nickel plated
Center Contacts: Copper alloy,
gold plated
MVP32K3*75T Midsize
MVP32K3*NT Midsize
* Add “N” for non-normalled version
3.5"
3.5"
Terminated
Non-terminated
See Page 39 for Individual Midsize Jacks Ordering Information
